MDT Analog Input/Output AIO – 0-10 V Control and Measurement in Flush-Mount Format

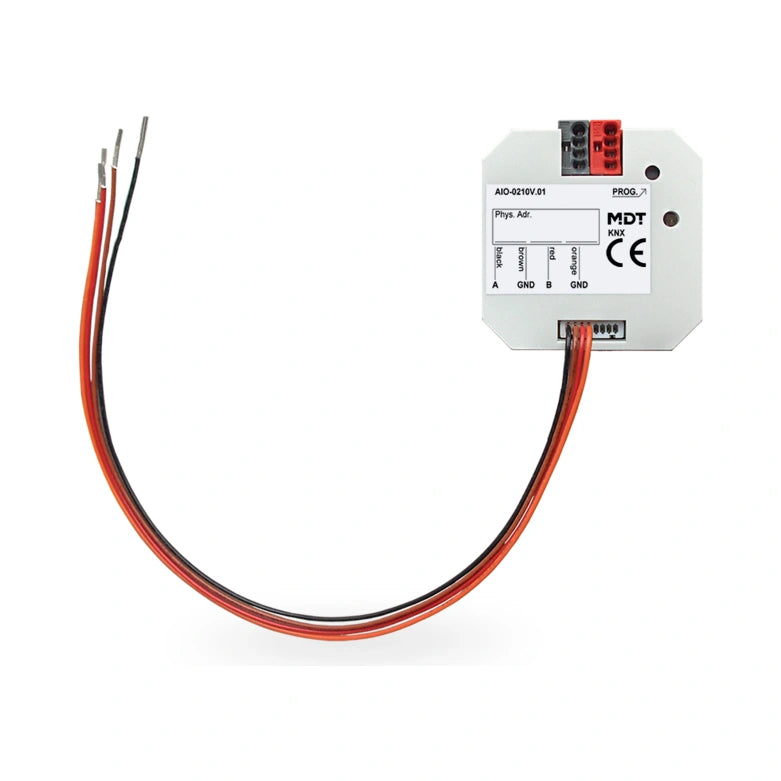

The MDT Analog Input/Output AIO-0210V.01 offers two freely configurable channels for the switch box. Use it to control devices with a 0-10 V input, such as ventilation systems, or to capture measured values from level and pressure sensors via 0-10 V / 2-10 V or 0-20 mA / 4-20 mA. Each channel can be configured as either an input or output and is galvanically isolated from the KNX bus.
Main Features
-
Flexible Channels
- Each channel can be independently configured as an input or output
- Inputs/outputs are galvanically isolated from the bus and galvanically connected to each other
- The voltage for output operation is generated within the actuator – no external power supply required
-
Input Functions
- Switchable between 0-10 V / 2-10 V or 0-20 mA / 4-20 mA
- Parametrizable unit of measurement and DPT conversion
- Min/max function, wire break detection, threshold and traffic light function
-
Output Functions 0-10 V
- Control via 1-byte, 2-byte float, or 1-bit objects
- Day/night function for limiting the setpoint
- Fail-safe operation in the event of a setpoint failure
Technical Details
- Channels: 2
- Input voltage: 0-10 V / 2-10 V (internal resistance 130 kΩ)
- Current loop: 0-20 mA / 4-20 mA (burden 266 Ω)
- Output voltage: 0-10 V, max. 2 mA, load resistance min. 5 kΩ
- Power supply: KNX bus, typ. < 0.3 W
- Connection: Screw terminal 0.5–4.0 mm² solid wire / 0.5–2.5 mm² fine-stranded wire
- Dimensions (W x H x D): 41 x 41 x 12 mm
- Ambient temperature: 0 to +40 °C
- Protection rating: IP20
Applications
- Control of ventilation and air conditioning units with a 0-10 V input
- Capture of level, pressure, or other sensor values in the KNX system
- Decentralized installation directly in the switch box
Additional Benefits
- Fast application download thanks to Long Frame Support (from ETS 5 onwards)
- Production in Engelskirchen (Germany), certified according to ISO 9001
-
3-year product warranty from MDT
With the MDT Analog Module 0-10 V 2-Channel Up (AIO-0210V.01), you are choosing KNX technology from MDT technologies in Germany. This means you benefit from well-thought-out functions, easy commissioning in the ETS, and long-lasting quality. Order now from techarena24.shop and take your building automation to the next level.
Product Information
Manufacturer part number: AIO-0210V.01
Item number: SMH0304
