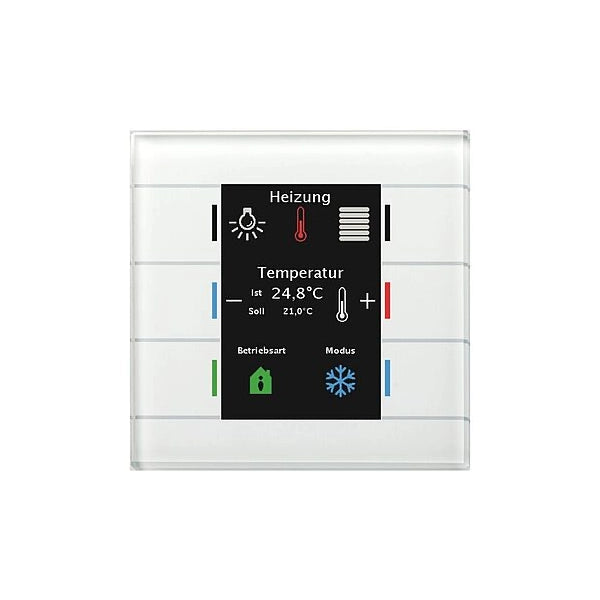

MDT Glass Pushbutton II Smart – Innovative design and intelligent control for KNX systems
The MDT Glass Push Button II Smart with temperature sensor combines elegant design with powerful KNX technology, enabling precise control of lighting, blinds, scenes, and heating systems . Available in white (BE-GT2TW.02) and black (BE-GT2TS.02) , this modern control element impresses with its intuitive operation, high-quality workmanship, and versatile automation functions.
Key features
-
Color display for clear visualization:
- Large, active TFT display with adjustable background color ( white/black ).
- Displays indoor and outdoor temperature, time, and individual status messages.
- Optimized readability through automatic brightness adjustment.
-
Flexible control options:
-
6 sensor surfaces , freely configurable as single buttons or button pairs .
- Up to 12 functions can be programmed on 2 or 3 levels .
- Control of switching , dimming , blinds and scenes .
-
Integrated temperature sensor:
- Measuring range: 0 to +40 °C, accuracy ±0.5 °C.
- Ideal for combination with MDT heating actuators for precise room climate control.
-
Innovative additional features:
-
Touch function: Scene control by simultaneously touching multiple sensor surfaces.
-
Group control: Long or extra-long button press for simultaneous operation of multiple devices.
-
Mapping function: Easy assignment and customization of control functions via ETS.
-
User-friendliness:
- Automatic brightness control of the display via integrated light sensor.
-
RGB status display for each sensor area, individually controllable via internal or external objects.
Technical details
-
Temperature measuring range: 0 to +40 °C.
-
Power supply: KNX bus, typical consumption < 0.6 W.
-
Dimensions: 92 x 92 x 29.2 mm (W x H x D).
-
Assembly:
- Suitable for standard switch boxes.
- Recommended mounting height: 1.50–1.60 m for optimal readability.
-
Ambient temperature: 0 to +45 °C.
-
Protection class: IP20 – for dry indoor areas.
-
KNX compatibility: KNX TP-256, configurable with ETS 5 / ETS 6.
Applications
- Convenient control of lighting, blinds, heating and scenes .
- Precise temperature monitoring and control for an ideal indoor climate.
- Integration into smart home systems and building automation with energy-efficient control.
Design and functionality
With its high-quality glass surface and elegant design, the MDT Glass Touch II Smart blends harmoniously into any room concept. The capacitive sensor technology ensures a precise response to touch, while the intuitive menu navigation and clear symbols guarantee ease of use. Thanks to the cleaning function, the device can be cleaned without triggering unintentional commands.
Product information
Manufacturer part number: BE-GT2TW.02
Article number: SMH0234
