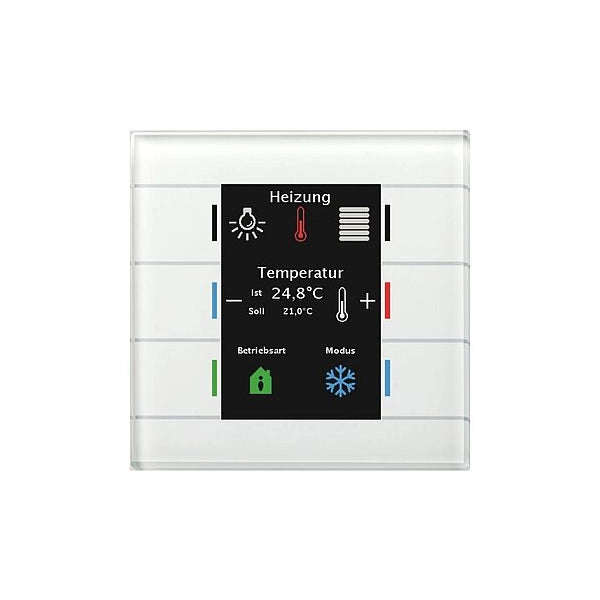

MDT Glass Pushbutton II Smart – Innovative design and intelligent control for KNX systems
The MDT Glass Pushbutton II Smart combines modern design with maximum functionality for sophisticated KNX building automation. With up to 12 individually configurable functions , a high-resolution color display , and an optional temperature sensor , it's the perfect control solution for lighting, blinds, scenes, and more. Available in white (BE-GT20W.02) and black (BE-GT20S.02) – the perfect design for every room concept.
Key features
-
Modern color display:
- Displays indoor and outdoor temperature, time and status information.
- Customizable background colors (white/black) for perfect readability in any environment.
- Clear user interface for intuitive operation.
-
Flexible control options:
- Up to 6 sensor surfaces , individually usable as single buttons or button pairs .
- Supports short and long key presses with up to two objects per key.
- Configuration of up to 12 functions on 2 or 3 levels – ideal for complex control tasks.
-
Advanced Features:
-
Touch function: Triggering predefined scenes by simultaneously touching multiple sensor surfaces.
-
Group control: Easy operation of multiple devices or scenes with a long or extra-long button press.
-
Mapping function: Quick and flexible assignment of control functions.
-
RGB status display: Each sensor surface can be individually illuminated for status and function indications.
-
Models with temperature sensor:
- Temperature measuring range: 0 to +40 °C (models BE-GT2TW.02 and BE-GT2TS.02 ).
- Seamless integration with MDT heating actuators for room climate control.
Technical details
-
Dimensions: 92 x 92 x 29.2 mm (W x H x D).
-
Assembly:
- Installation in standard switch boxes.
- Recommended mounting height: 1.10–1.25 m (as a push button) or 1.50–1.60 m (as an operating device).
-
Power supply: Operation via KNX bus, typical consumption < 0.6 W.
-
Environmental conditions:
- Operating temperature: 0 to +45 °C.
- Protection class: IP20 – suitable for dry indoor areas.
-
Compatibility: KNX TP-256, configurable with ETS 5 / ETS 6.
Applications
- Convenient control of lights, blinds, heating and scenes .
- Real-time visualization of temperature, time, and status messages .
- Individual customization for smart home and commercial installations with the highest design standards.
Design and user-friendliness
The elegant glass surface in black or white gives the MDT Glass Pushbutton II Smart a modern, high-quality appearance. Its intuitive operation, configurable icons, and flexible control options make it the ideal choice for contemporary KNX environments – from private living spaces to professional building automation systems.
Product information
Manufacturer part number: BE-GT20W.02
Article number: SMH0236
