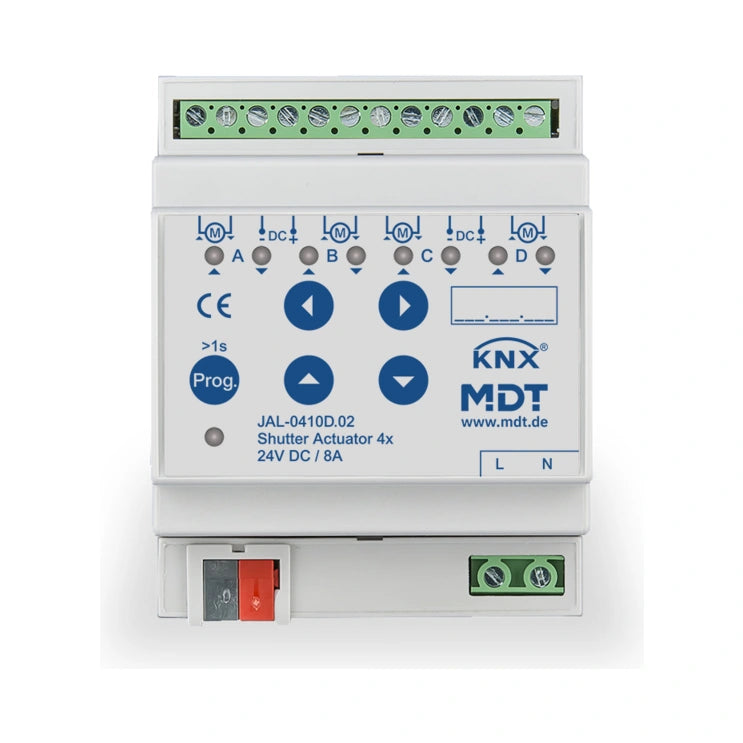

MDT JAL Blind Actuator – 4 Channels for 24 V DC Drives
The MDT JAL-0410D.02 blind actuator controls four 24 V DC motors for blinds, roller shutters, or awnings. It does more than just move up and down: With the integrated sun position calculation, it shades exactly where it is actually needed and automatically adjusts the slats.
Main Features
-
Functions
- Blind / roller shutter operating mode
- Automatic shading and automatic slat adjustment with sun position calculation
- Practical ventilation function (window open / tilted)
- Run, pause, and step times freely adjustable, separate run times for up / down
- 1-byte absolute positioning for height and slat, scene functions
- Alarm, central, and locking functions, manual operation lockable with LED display per channel
Technical Details
- Channels: 4
- Switching voltage: 24 V DC
- Switching current: 8 A
- Motor power: 180 W per motor
- Mains supply: 230 V AC / 50 Hz, typ. < 0.3 W
- KNX bus power consumption: typ. < 0.15 W
- Screw terminal: 0.5–4.0 mm² solid / 0.5–2.5 mm² fine-stranded
- Ambient temperature: 0 to +45 °C
- Protection rating: IP20
- Module width: 4 TE, DIN rail device
Applications
- Control of 24 V DC blind and roller shutter motors
- Automatic shading based on sun position
- Residential and office buildings with DC sun protection systems
Additional Benefits
- Fast application download thanks to Long Frame Support (from ETS 5 onwards)
- Production in Engelskirchen (Germany), certified according to ISO 9001
-
3-year product warranty from MDT
With the MDT JAL 4-channel 24 V DC blind actuator (JAL-0410D.02), you are choosing KNX technology from MDT technologies in Germany. This means you benefit from well-thought-out functions, easy commissioning in ETS, and long-lasting quality. Order now at techarena24.shop and take your building automation to the next level.
Product Information
Manufacturer part number: JAL-0410D.02
Item number: SMH0318
