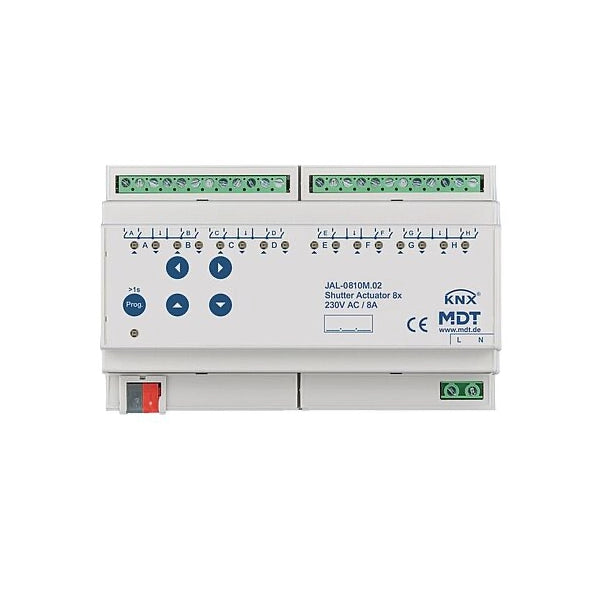

MDT blind actuator – Precise control for blinds and roller shutters in KNX systems
The MDT blind actuator with travel time measurement is the ideal solution for the intelligent control of blinds, roller shutters, and sun protection systems. Available in 4- or 8-channel versions (JAL-0410M.02 and JAL-0810M.02), it offers maximum flexibility and precision for residential and commercial projects where precise positioning and automation are paramount.
Key features
-
Driving time measurement:
- Precise positioning of blinds and louvers for precise control.
- Seamless integration into complex KNX automation systems.
-
Flexible control options:
- Control of up to 8 channels independently of each other.
- Supports 1-bit automatic positions and 1-byte position values for height and slat control.
- Individually programmable driving and walking times.
-
Energy-efficient automation:
- Automatic shading and louver tracking based on sun position calculation.
- Integrated ventilation function for tilted windows.
-
High security:
- Central, alarm and locking functions with freely definable behavior.
- Automatic reset after forced guidance for maximum operational reliability.
-
User-friendly handling:
- Lockable hand control with LED status indicator per channel.
- Simplified installation thanks to internally bridged L-connectors.
Technical details
-
Models and performance:
-
JAL-0410M.02: 4 channels, 10A, motor power up to 300W (230VAC).
-
JAL-0810M.02: 8 channels, 10A, motor power up to 300W (230VAC).
-
Power supply:
- Operating voltage: 230VAC.
- Power consumption: < 0.3 W (device), < 0.15 W (KNX bus).
-
Switching performance and durability:
- Resistive load: 10A.
- Mechanical lifespan: over 1,000,000 switching cycles.
-
Operating conditions:
- Temperature range: 0 to +45 °C.
- Protection class: IP20 – suitable for dry indoor areas.
-
Assembly:
- DIN rail mounting device with 4TE (JAL-0410M.02) or 8TE (JAL-0810M.02).
Applications
- Automated control of blinds, roller shutters and external venetian blinds in residential and commercial buildings.
- Integration into energy-efficient KNX scenarios for shading and room climate control.
- Comfort and safety features through flexible programming.
Additional benefits
- Production in Engelskirchen , certified according to ISO 9001.
- 3-year manufacturer's warranty.
- Compatible with ETS 4/5 and all common KNX systems.
Product information
Manufacturer item number: JAL-0810M.02
Article number: SMH0269
