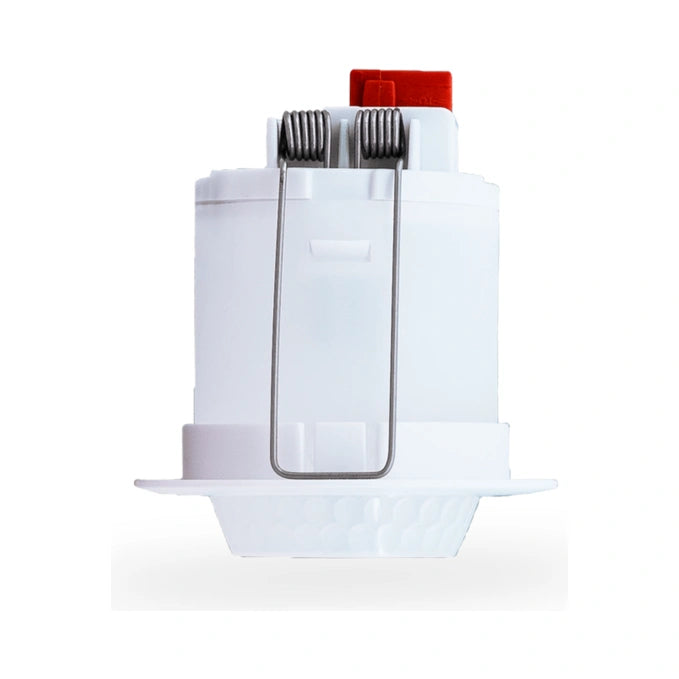

MDT Presence Detector 360° L2 IP44 – Presence detection also in the bathroom
The MDT presence detector SCN-P360L2.03 with 2 sensors is designed to protection class IP44 and is installed in suspended ceilings. This also makes it suitable for wet rooms such as bathrooms. Presence-dependent control saves energy, as lighting and HVAC systems only operate when needed.
Main features
-
Detection
- 2 sensors with lenses for presence detection
- Range 9 m Ø, presence 5 m Ø
- Adjustable trigger and presence sensitivity for day, night and alarm
- Short-time presence detection to reduce the run-on time
-
Functions
- 2 light channels, sensors can be evaluated individually
- 1 HVAC channel and 1 alarm / reporting channel
- Input for external push-button with return time
- Locking and override function, day / night function with second switching device
- Integrated white LED night light and orientation light function
Technical details
- Sensors: 2
- Range: 9 m Ø, presence 5 m Ø
- Protection class: IP44
- Installation: Ceiling installation, hole installation drilling diameter 32 mm
- Installation depth: 42 mm
- Color: Pure white glossy
- Integrated bus coupler
Applications
- Presence-dependent lighting control in bathrooms and wet rooms
- Hallways, ancillary rooms and offices with suspended ceilings
- HVAC control and room monitoring
Additional benefits
- Made in Germany
-
3-year warranty from MDT
With the MDT presence detector 360° with 2 sensors IP44 pure white (SCN-P360L2.03), you are choosing KNX technology from MDT technologies in Germany. This means you benefit from well-thought-out functions, easy commissioning in the ETS and long-lasting quality. Order now at techarena24.shop and take your building automation to the next level.
Product information
Manufacturer part number: SCN-P360L2.03
Item number: SMH0325
