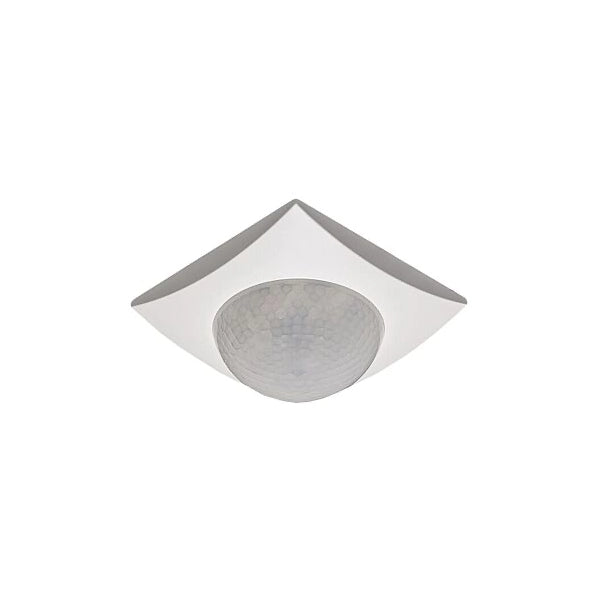

MDT KNX presence detector with 4 sensors, pure white matte

MDT presence detectors – Precise motion detection and efficient light control for KNX systems

The MDT SCN-P360D4.03 presence detector offers a reliable and energy-efficient solution for motion and light control in modern KNX systems . With four highly sensitive pyroelectric detectors and a 360° detection range, this sensor ensures maximum accuracy and convenience – ideal for use in residential, office, and commercial buildings.

Key features

• High-precision sensors
  • Detection range: 360° for comprehensive room coverage.
  • Range when moving: up to 16 m (diameter) .
  • Range when present: up to 8 m (diameter) .
  • Sensitivity adjustable in 10 steps – ideal for different room sizes.
• Efficient lighting control
  • Up to 4 light channels , individually configurable.
  • Automatic adjustment to ambient light in the range of 5–1000 lux .
  • Adjustable delay time and separate sensitivity for day and night operation.
• Extended control channels
  • HVAC duct for integrating heating, ventilation and air conditioning.
  • Alarm and notification channel with adjustable observation time to reduce false alarms.
• User-friendly additional functions
  • Scene control for individual lighting and automation scenarios.
  • Integrated orientation and night light (white) for added safety and comfort.
  • Locking and coercive functions with adjustable fallback time for flexible control.

Technical details

• Detection range:
  • Movement: up to 16 m (diameter).
  • Presence: up to 8 m (diameter).
• Light sensor dynamic range: 5–1000 lux.
• Power supply: KNX bus, typical consumption < 0.3 W.
• Dimensions: 85 × 85 × 38 mm (W × H × D).
• Mounting height: 2–4 m.
• Operating temperature: 0 to +40 °C.
• Protection class: IP20 – suitable for dry indoor areas.
• Compatibility: KNX TP-256 interface, supports ETS 4 and ETS 5.

Applications

• Automatic lighting control in offices, conference rooms and living areas.
• Presence-dependent HVAC control for optimizing energy consumption and room comfort.
• Scene-based lighting control for customized comfort and safety solutions.
