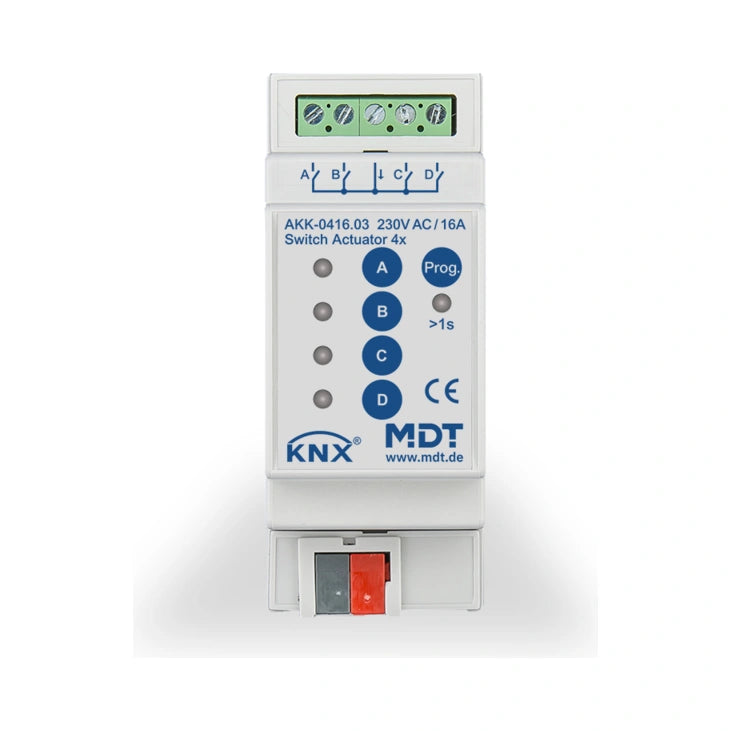

MDT Switching Actuator AKK Compact – 4 Channels in Just 2 Modular Units
The MDT Switching Actuator AKK-0416.03 from the Compact series switches four loads and requires only 2 modular units in the distribution board – half that of comparable switching actuators. With a switching capacity of 16 A and 70 µF capacitive load, it is ideal for small to medium loads. Thanks to the common L connection, you also reduce wiring effort.
Main Features
-
Functional Scope
- Lockable manual operation and LED indicator per channel
- NO and NC operation, status reporting for manual operation
- Time functions (on-/off-delay), extensive staircase lighting and pulse functions
- Feedback function (active / passive), logical combinations, extended scene functions per channel
- Central functions and lockable objects for forced operation
- Configurable behavior in the event of bus voltage failure / restoration
Technical Details
- Channels: 4
- Modular width: 2 modular units, DIN rail-mounted device
- Common L connection
- Switching capacity: 16 A resistive load, 70 µF capacitive load, 230 V AC
- Incandescent bulbs / high-voltage halogen: 2000 W, low-voltage halogen: 1200 W
- Fluorescent lamps: 1800 W uncompensated, 800 W parallel-compensated
- Max. number of electronic transformers: 10
- Mechanical switching cycles: 1,000,000
- KNX: TP-256 with Long Frame support, databases from ETS 4
- KNX bus power consumption: typ. < 0.3 W
- Ambient temperature: 0 to +45 °C
- Protection rating: IP20
Applications
- Switching lighting and loads in apartments and small distribution boards
- Space-saving solutions in distribution boards with limited space
- Staircase lighting, time and scene controls in the KNX system
Additional Benefits
- Fast application download thanks to Long Frame Support (from ETS 5)
- Supply voltage via KNX bus
- Production in Engelskirchen (Germany), certified according to ISO 9001
-
3-year product warranty from MDT
With the MDT Switching Actuator 4-channel 16 A REG (AKK-0416.03), you are choosing KNX technology from MDT technologies in Germany. This allows you to benefit from well-thought-out functions, easy commissioning in ETS, and long-lasting quality. Order now at techarena24.shop and take your building automation to the next level.
Product Information
Manufacturer part number: AKK-0416.03
Item number: SMH0306
