MDT switching actuator – Compact and powerful solution for KNX systems

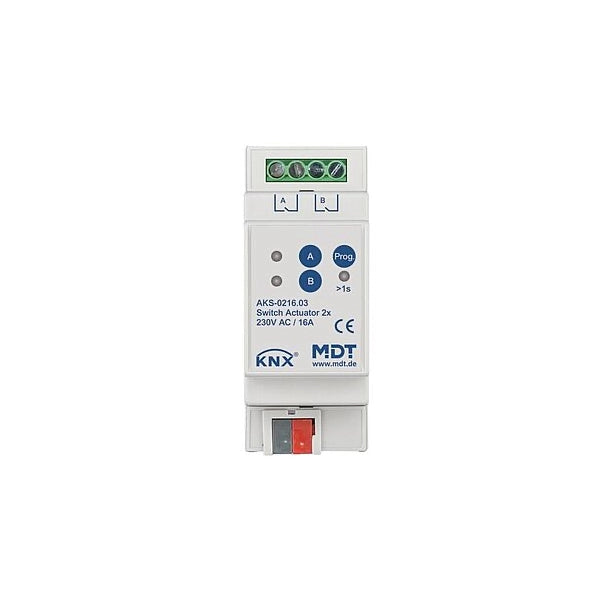

The MDT AKS-0216.03 switching actuator is a flexible and space-saving DIN rail device for controlling up to two electrical loads . With high switching capacity, efficient design, and comprehensive KNX functions, it is the ideal choice for residential and commercial installations where reliability and precision are essential.
Key features
-
Maximum control efficiency:
- Independent control of up to 2 consumers .
- High switching capacity up to 16 A per channel .
- Supports normally closed and normally open operation .
- Designed for high inrush currents up to 600 A / 150 µs and 250 A / 600 µs .
-
Advanced Features:
-
Time functions for on/off delay and staircase lighting operation.
-
Scene control with up to 8 scenes per channel.
-
Locking and forced controls with configurable fallback time.
-
Status messages (active/passive, inverted or cyclical).
-
Logical connections and central switching functions for advanced automation.
-
Threshold switches for byte and float values.
-
Operating hours counter for monitoring canal activity.
-
User-friendliness:
- Manual operation via integrated buttons with LED status indicator per channel.
-
Compact design for easy installation in the control cabinet (only 2 modules).
- Programmable behavior upon bus and mains voltage recovery.
Technical details
-
Switching capacity per channel:
- Resistive load: 16 A .
- Capacitive load: 140 µF .
- Incandescent lamps: 2500 W , HV halogen lamps: 2500 W.
- NV halogen (electronic transformer): 1500 W .
- Fluorescent lamps uncompensated: 2300 W , parallel compensated: 1500 W.
- Maximum 20 electronic ballasts (ECG) .
-
Mechanical lifespan: Over 1,000,000 switching cycles .
-
KNX compatibility: TP-256 interface with Long Frame support for ETS5 and ETS6.
-
Assembly and supply:
- Dimensions: 2 TE (compact design).
- Power supply via KNX bus, consumption: < 0.25 W .
- Protection class: IP20 – suitable for dry indoor areas.
- Operating temperature: 0 to +45 °C .
Applications
- Control of lighting, ventilation and electrical consumers in KNX installations.
-
Scene and time controls for increased comfort and energy efficiency.
- Suitable for use in centralized and decentralized control systems in smart homes and commercial buildings.
Additional benefits
-
Production in Germany – certified according to ISO 9001.
-
3-year warranty for maximum reliability and durability.
- Easy integration and parameterization with ETS databases .
Product information
Manufacturer part number: AKS-0216.03
Article number: SMH0220
