OBO terminal block 25mm² black - 2056569

€7,99 EUR

Sale Sold out

Taxes included. Shipping calculated at checkout.

In stock

Delivery time: 2-5 working days

Bequem auf Rechnung Bezahle sicher mit Paypal oder Klarna

30 Tage Rückgaberecht Risikofrei dank Zufriedenheitsgarantie

SKU:LEF0603 / 2056569

View full details

Product details

DESCRIPTION

OBO terminal block 16.0 mm² – black

The OBO 16.0 mm² terminal block is a 12-pole terminal block made of polypropylene and is used for the safe connection of conductors with high current loads.

The strip can be separated into individual terminals and is suitable for both fixed and flexible installations.

Design and construction

Terminal block made of polypropylene .
12-pole version, separable into individual terminals by "twist'n'pull".
Clamps and screws made of steel , electro-galvanized.
Screws tightened and captive .
Color: black .

Electrical data

Nominal cross-sectional area: 16.0 mm² .
Nominal voltage: 450 V .
Rated current: 76 A .
Maximum clampable cross-section per side: 16 mm² rigid or 10 mm² flexible or 6 mm² flexible .

Connection and assembly

Connection type: Screw connection .
Connection position: side .
Number of clamping points: 12 .
Number of terminals per pole: 2 .
Suitable for solid, multi-strand and fine-stranded conductors.
Mounting type: Direct mounting .

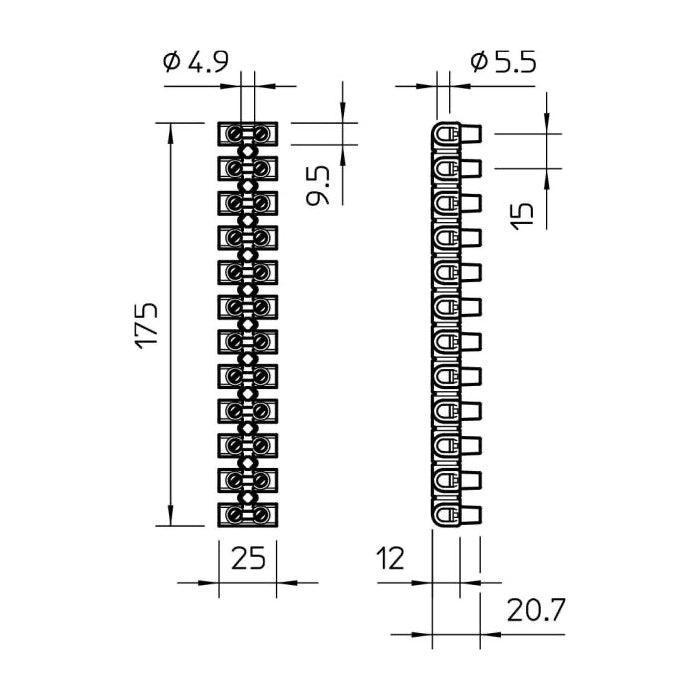

Mechanical data

Length: 175 mm .
Width: 25 mm .
Height: 20.7 mm .
Center-to-center hole spacing: 15 mm .

Temperature range

Permissible ambient temperature: -5 °C to +80 °C .

Conclusion

The OBO terminal block 16.0 mm² offers high current carrying capacity and a robust design.

It is suitable for reliable conductor connections in demanding electrical applications.
