OBO terminal block 25mm² black - 2056585

€22,90 EUR

Sale Sold out

Taxes included. Shipping calculated at checkout.

In stock

Delivery time: 2-5 working days

Bequem auf Rechnung Bezahle sicher mit Paypal oder Klarna

30 Tage Rückgaberecht Risikofrei dank Zufriedenheitsgarantie

SKU:LEF0604 / 2056585

View full details

Product details

DESCRIPTION

OBO terminal block 25.0 mm² – black

The OBO 25.0 mm² terminal block is a 12-pole terminal block made of polypropylene for high-performance conductor connections.

The strip can be separated into individual terminals and is suitable for both fixed and flexible installations.

Design and construction

Terminal block made of polypropylene .
12-pole version, can be separated into individual terminals.
Brass clamps.
Steel screws, electro-galvanized and transparently passivated.
Screws tightened and captive .
Color: black .

Electrical data

Nominal cross-sectional area: 25.0 mm² .
Nominal voltage: 750 V.
Rated current: 101 A .
Maximum clamping capacity per side: 25 mm² flexible or 16 mm² rigid .

Connection and assembly

Connection type: Screw connection .
Connection position: side .
Number of clamping points: 12 .
Number of terminals per pole: 2 .
Suitable for solid, multi-strand and fine-stranded conductors.
Mounting type: Direct mounting .

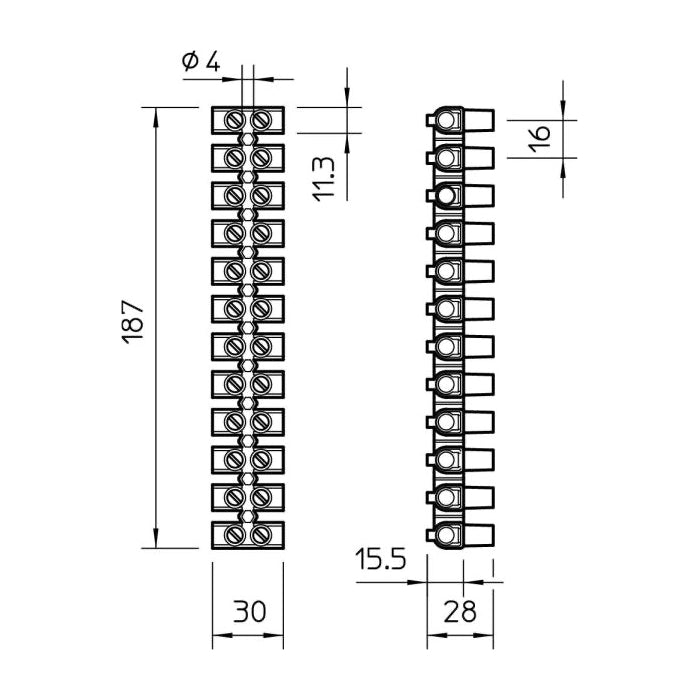

Mechanical data

Length: 187 mm .
Width: 30 mm .
Height: 28 mm .
Center-to-center hole spacing: 16 mm .

Temperature range

Permissible ambient temperature: -5 °C to +80 °C .

Conclusion

The OBO 25.0 mm² terminal block offers a very high current carrying capacity and a robust design.

It is designed for secure conductor connections under high electrical loads.
