Product details

DESCRIPTION

OBO terminal block 4.0 mm² – black

The OBO 4.0 mm² terminal block is a 12-pole terminal block made of polypropylene and is suitable for a wide range of connection tasks.

The strip can be separated into individual terminals, and it allows for flexible adaptation to the respective requirements.

Design and construction

Terminal block made of polypropylene .
12-pole version, can be separated into individual terminals.
Clamps and screws made of steel , electro-galvanized.
Screws tightened and captive .
Color: black .

Electrical data

Nominal cross-section: 4.0 mm² .
Nominal voltage: 450 V .
Rated current: 32 A .
Maximum clamping capacity per side: 4 mm² rigid or 2.5 mm² flexible .

Connection options

Connectable conductors: solid, fine-stranded without ferrule and multi-stranded.
Connection type: Screw connection .
Connection position: side .
Number of terminals: 12 , with 2 terminals per pole .

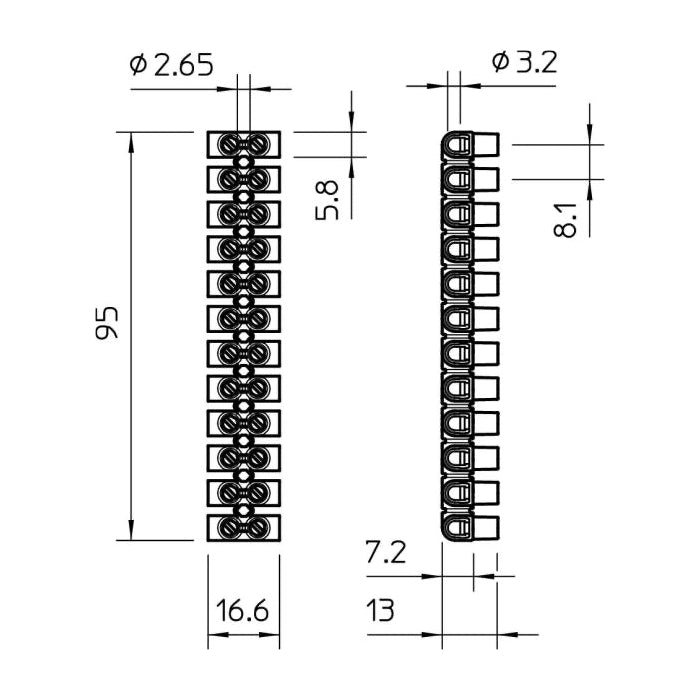

Mechanical data

Length: 95 mm .
Width: 16.6 mm .
Height: 13 mm .

Environmental conditions

Ambient temperature: -5 °C to +80 °C .
Maximum permissible ambient temperature according to EN 60998: +80 °C .

Conclusion

The OBO 4.0 mm² terminal block offers a robust design, clear electrical characteristics and flexible handling.

It is suitable for secure conductor connections and for applications with defined current and voltage values.
