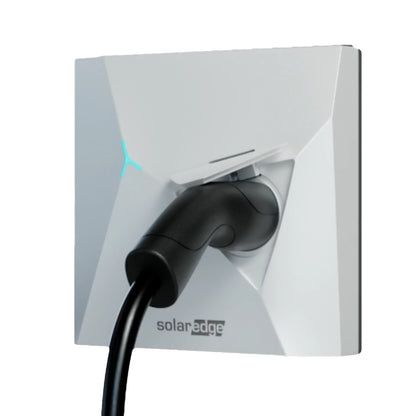

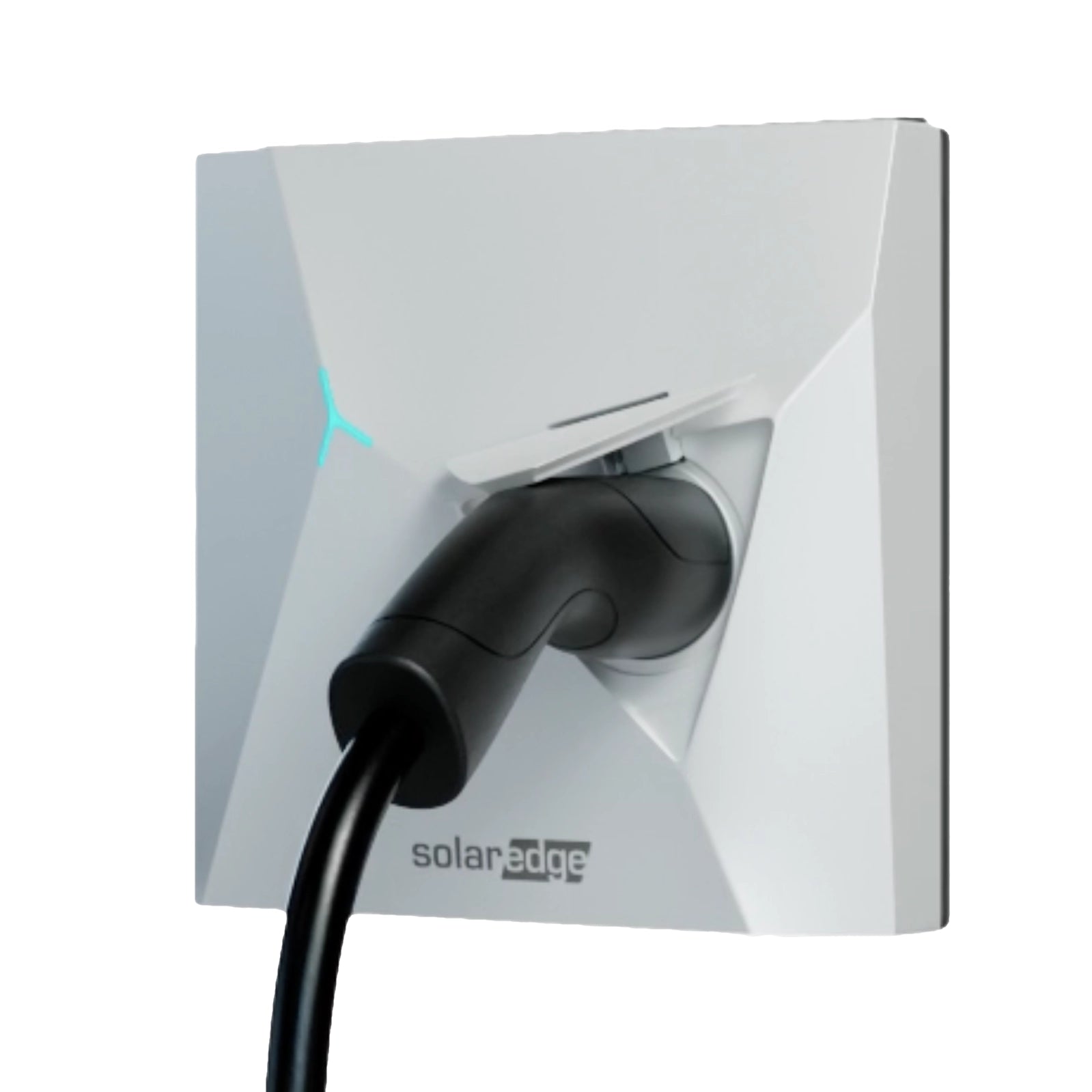

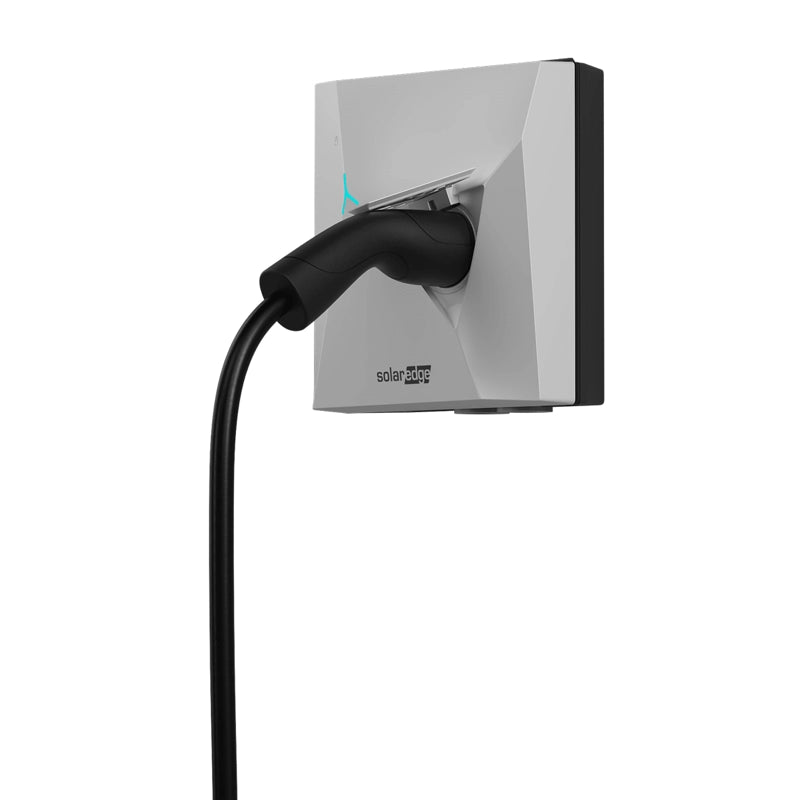

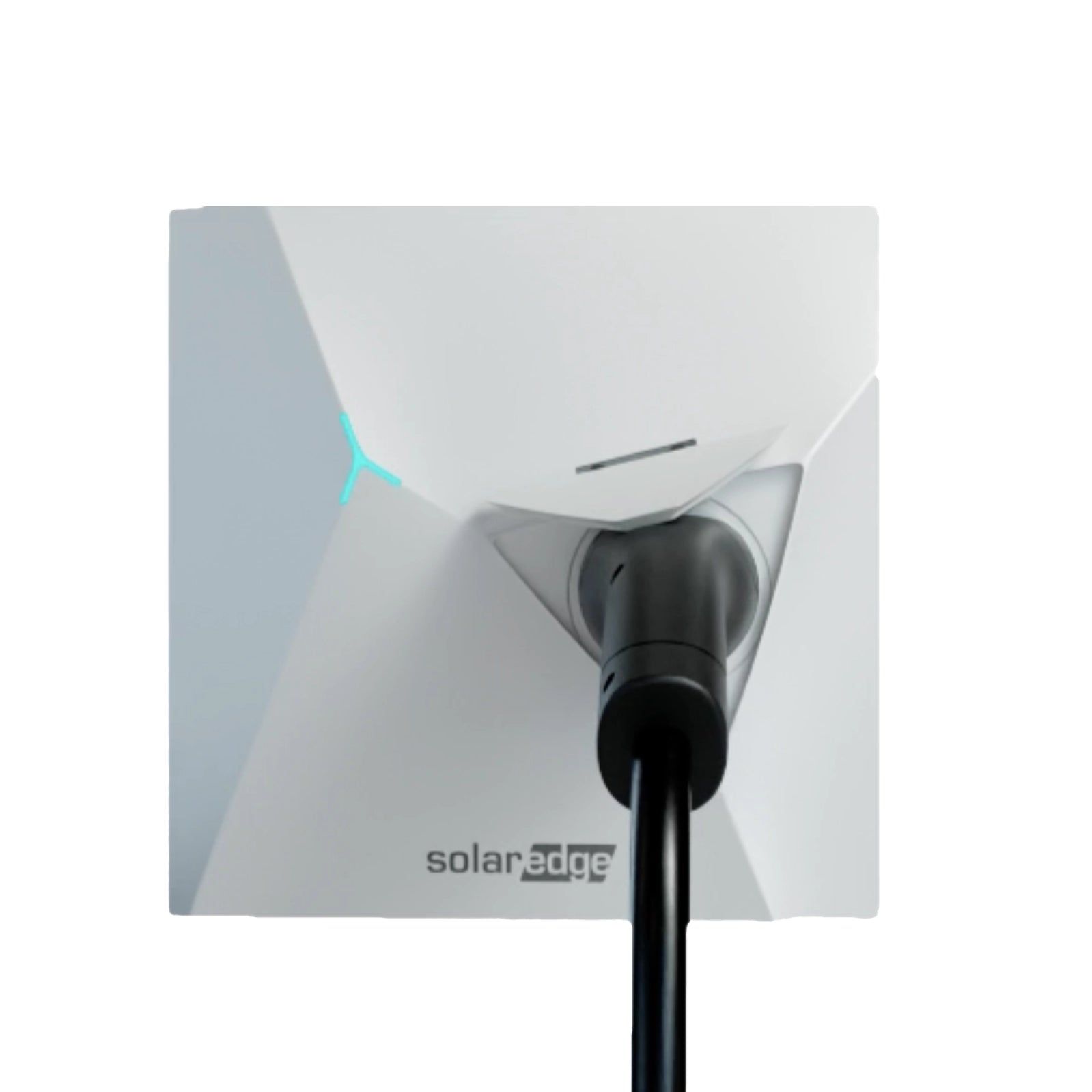

SolarEdge ONE 22 kW Pro charging station – Premium wallbox with MID meter and LTE
The SolarEdge ONE 22 kW Pro charging station is the premium version of the latest generation of wallboxes in the SolarEdge ecosystem. With a MID-certified energy meter , integrated LTE module , and ISO 15118 Plug & Charge, it offers maximum functionality for demanding residential and commercial applications.
The automatic phase switching between 1 and 3 phases ensures optimal use of available energy. This allows excess solar energy to be used efficiently and significantly increases self-consumption.
Highlights
- Up to 22 kW charging power – Mode 3, Type 2 socket, 3-phase with 6–32 A
- MID-certified energy meter (Class B, EN 50470-3) with OLED display
- Integrated LTE module (eSIM) for maximum range
- ISO 15118 Plug & Charge – hardware ready
- Automatic phase switching for optimized excess charging
- Smart Scheduling – Charging at the cheapest electricity prices or with PV surplus
- OCPP 1.6J for commercial and standalone installations
- RFID access control with integrated reader, 1x RFID card included
- Triple connectivity: Wi-Fi, Ethernet and LTE
- Compact and lightweight – 235 × 230 × 130 mm, only 2.3 kg
- Snap-on mounting for quick installation
MID-certified energy meter with OLED display
The Pro version features a legally compliant MID Class B energy meter according to EN 50470-3. This ensures accurate and legally secure billing of the amount of energy consumed at all times.
The integrated OLED display shows consumption values directly on the device. This makes the Pro version particularly suitable for commercial applications and company car accounting.
LTE connectivity and ISO 15118 Plug & Charge
Thanks to the integrated eSIM module (LTE/2G/GPRS), the wallbox is always accessible, even without local Wi-Fi or Ethernet. This is particularly useful in underground parking garages or locations with limited network coverage.
Furthermore, the hardware is prepared for ISO 15118 Plug & Charge . This means the vehicle is automatically recognized upon plugging in and the charging process starts without manual authentication.
Smart charging with excess PV power
The SolarEdge ONE Pro dynamically adjusts the charging power to the available solar power. Thanks to automatic phase switching, charging starts even with low surplus power on one phase and automatically scales up to three phases as PV production increases.
Additionally, the Import Limitation function enables intelligent peak shaving to avoid load peaks in the home network.
Convenient control via app and RFID
Operation is conveniently managed via the MySolarEdge app . The app enables remote control, the creation of charging schedules, and access to the charging history.
Thanks to integrated RFID access control (ISO/IEC 14443 Type A), multiple users can be securely authorized. For commercial and standalone installations, the Pro version additionally supports OCPP 1.6J .
Technical data
-
Article number: SE-EVN22SEM-01
-
Charging power: up to 22 kW
-
Charging current: 6–32 A per phase
-
Voltage: 3 × 230/400 VAC (±10%)
-
Network types: TN / TT / IT
-
Connection: Type 2 socket (Mode 3, IEC 61851-1)
-
Phases: 1 or 3, automatic switching
-
Residual current protection: RDC-DD (6 mA DC) according to IEC 62955
-
Frequency: 50 Hz
Connectivity
-
WiFi: IEEE 802.11 b/g/n, 2.4GHz
-
Ethernet: RJ45
-
LTE: eSIM (LTE/2G/GPRS)
-
Bluetooth: BLE 4.2
-
RFID: ISO/IEC 14443 Type A
-
OCPP: 1.6J (commercial/standalone)
-
ISO 15118: hardware ready (Plug & Charge)
-
Energy meter: MID Class B (EN 50470-3) with OLED display
Dimensions & Assembly
-
Dimensions (H×W×D): 235 × 230 × 130 mm
-
Wall mounting (H×W): 206 × 130 mm
-
Weight: 2.3 kg
-
Cable entry point: top, rear or bottom
-
Cable cross-section: 0.2–16 mm²
-
Stripping length: 12 mm
-
Mounting type: wall mounting (snap-on)
Environmental conditions
-
Installation: Indoor and outdoor
-
Operating temperature: -30 °C to +50 °C
-
Storage temperature: -40 °C to +70 °C
-
Humidity: 5–80% (non-condensing)
-
Maximum altitude: 2,000 m above sea level
-
Protection class: IP54
-
Mechanical protection: IK08
Standards & Approvals
CE certified according to 2014/53/EU (RED) , 2014/35/EU (LVD) , 2014/30/EU (EMC) , 2011/65/EU (RoHS) and 2014/32/EU (MID, Modules B+D) . Eligible for KfW 441 and BMVI funding. WEEE Reg. No.: DE20777619.
Difference from the standard version
-
MID-certified energy meter (Class B) with OLED display – only in the Pro version
-
LTE/eSIM module – only in the Pro version
-
ISO 15118 Plug & Charge (hardware-ready) – only in the Pro
-
OCPP 1.6J – for commercial installations
Conclusion
The SolarEdge ONE 22 kW Pro charging station represents intelligent, PV-optimized, and professional charging of electric vehicles. Thanks to its MID-certified energy meter, LTE connectivity, and ISO 15118 Plug & Charge, it offers maximum flexibility for private and commercial applications.
Ideal for anyone looking for a future-proof wallbox with legally compliant billing and professional connectivity.
Manufacturer: SolarEdge | Warranty: 3 years
"
SolarEdge ONE charging station 22 kW Pro (SE-EVN22SEM-01) – Datenblatt
